Friday, March 25, 2011

How to Generate Security Configuration Report for WebSphere Application Server in IBM RAD Admin Console

In this Post We shall learn How to Generate Security Configuration Report for WebSphere Application Server in IBM RAD Admin Console

Prerequisite :

1. One should have already created the WebSphere Application Server v6.1 @localhost in IBM RAD 7.5

2. Server Should be in Started Mode.

How to Generate Security Configuration Report for WebSphere Application Server in IBM RAD Admin Console we have to open the Admin Console.

  Step1: Open Admin Console ,Go to Security->Secure administration,application and infrastructure.

              One can able find the Security Configuration Wizard , Click on Security Configuration Report as shown in the screen shot below:



security_setting_report_rad





security_setting_report_rad_admin-console

One can  Generate Security Configuration Report for WebSphere Application Server in IBM RAD Admin Console with the help of same steps in all the other versions of IBM RAD i.e. RAD 6.0,RAD 7.0 and RAD 8.0.

Sunday, March 13, 2011

How To Start EAR For WebSphere Application Server in IBM RAD Admin Console

In this Post We shall learn How to Start EAR for WebSphere Application Server in IBM RAD Admin Console

Prerequisite :

1. One should have already created the WebSphere Application Server v6.1 @localhost in IBM RAD 7.5

2. Server Should be in Started Mode.

3. EAR Should be Created for Server

4. EAR Should be Installed/Deployed on the Server



How to Start EAR for WebSphere Application Server in IBM RAD Admin Console we have to open the Admin Console.



Step1: Open Admin Console ,Go to Applications->Enterprise Application. As Shown in the Screen Shot Click on Start Tab.

install-ear-ibm-rad-admin-console-start

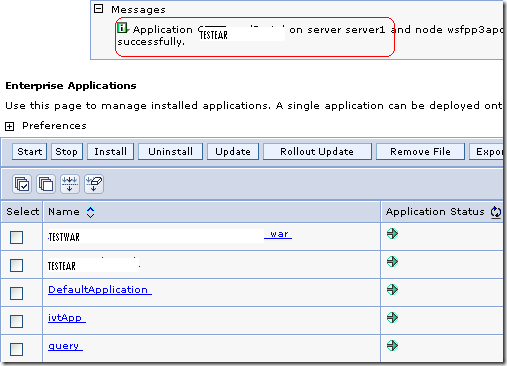

Once the Process is Finished ,the Application Status for the EAR should be displayed as green ,and one Message will display as Application EAR started Successfully.

Once the EAR got Installed/Deployed and Started one should Update the Global Web Server plug-in Configuration.



install-ear-ibm-rad-admin-console-started

One can Start EAR Application in IBM RAD Admin Console with the help of same steps in all the other versions of IBM RAD i.e. RAD 6.0,RAD 7.0 and RAD 8.0.

Thursday, March 10, 2011

How to Install/Deploy EAR in IBM RAD Admin Console

In this Post We shall learn How to Install/Deploy EAR for WebSphere Application Server in IBM RAD Admin Console

Prerequisite :

1. One should have already created the WebSphere Application Server v6.1 @localhost in IBM RAD 7.5

2. Server Should be in Started Mode.



How to Install/Deploy EAR for WebSphere Application Server in IBM RAD Admin Console we have to open the Admin Console.



Step1: Open Admin Console ,Go to Applications->Enterprise Application. As Shown in the Screen Shot Click on Install Tab.





install-ear-ibm-rad-admin-console

 Step2: One will get the next Page of Installation wizard ,

If  you want to install EAR from  your Local system then choose option as “Local file system” and Browse the EAR in your Local system.

If you want to install EAR from any Remote system or your EAR is somewhere at other server,then choose option as “Remote file system”, Give the full path

Click on Next button as shown in the screen shot below:

install-ear-ibm-rad-admin

 Step3: You will get the next page of installation wizard, Click Next button as shown in the screen shot below:

install-ear-ibm-rad-admin-console-web

 Step4: You will get the next page of installation wizard,One can find list of Web Module (WAR) configured with the EAR, Select the Checkbox for each Web Module,Click Next button as shown in the screen shot below:

install-ear-ibm-rad-admin-console-deploye

  Step5: You will get the next page of installation wizard,One can find list of Web Module (WAR) configured with the EAR and Virtual host at which the web module hosted. Select the Checkbox for each Web Module,Click Next button as shown in the screen shot below:



install-ear-ibm-rad-admin-console-deploye5



 Step6: You will get the next page of installation wizard,As shown in the Screen shot below: Click the Finish button.

install-ear-ibm-rad-admin-console-finish

 Step7: You will get the next page of installation wizard, Once the EAR Application got installed successfully ,Save the changes in master configuration.

install-ear-ibm-rad-admin-console-save

 Step8: Once the Save is complete ,One will able to find the EAR in the list ,As shown in the screen shot below:

install-ear-ibm-rad-admin-console-deployed

One can  Install/Deploy EAR Application in IBM RAD Admin Console with the help of same steps in all the other versions of IBM RAD i.e. RAD 6.0,RAD 7.0 and RAD 8.0.

Saturday, March 5, 2011

How To Update the Global Web Server plug-in Configuration for WebSphere Application Server in IBM RAD Admin Console

In this post we are going to learn how to Update the Global Web Server plug-in configuration file. The Web server plug-in configuration file settings determine whether an application server or the Web server handles user requests.

A global Web server plug-in configuration file plugin-cfg.xml  must be regenerated whenever:

1. One will change the configuration settings for an application server, cluster, Web container transport, or virtual host alias that is contained in the cell.

2. One will add a new application server, cluster, Web container transport, or virtual host alias to the cell.

The generated plugin-cfg.xml file is placed in the %was_profile_home%/config/cells directory. If your Web server is located on a remote machine, you must manually move this file to that machine.



Ref: http://publib.boulder.ibm.com/infocenter/wasinfo/v6r1/index.jsp?topic=/com.ibm.websphere.express.doc/info/exp/ae/uwsv_plugin_regen.html

Prerequisite :

  1. One should have already created the WebSphere Application Server v6.1 @localhost in IBM RAD 7.5

2. Server Should be in Started Mode.

3. EAR Should be Installed and Started already.

To Update the Global Web Server plug-in Configuration for WebSphere Applicatio Server in IBM RAD Admin Console we have to open the Admin Console.



Step1: To Update the Global Web Server plug-in Configuration for WebSphere Application Server in IBM RAD Admin Console ,

         Go to Environment->Update the Global Web Server plug-in Configuration as shown in the screen shot below:

                         -> Click OK

 uninstall_ear_websphererad6

 Step2:  You will get a Message “The Web server plug configuration was updated successfully” and it will Update plugin-cfg.xml file for you. And Refresh the Environment.

uninstall_ear_websphererad7

One can Update the Global Web Server plug-in Configuration for WebSphere Application Server in IBM RAD Admin Console with the help of same steps in all the other versions of IBM RAD i.e. RAD 6.0,RAD 7.0 and RAD 8.0.
