How to Generate Security Configuration Report for WebSphere Application Server in IBM RAD Admin Console

In this Post We shall learn How to Generate Security Configuration Report for WebSphere Application Server in IBM RAD Admin Console

Prerequisite :

1. One should have already created the WebSphere Application Server v6.1 @localhost in IBM RAD 7.5

2. Server Should be in Started Mode.

How to Generate Security Configuration Report for WebSphere Application Server in IBM RAD Admin Console we have to open the Admin Console.

  Step1: Open Admin Console ,Go to Security->Secure administration,application and infrastructure.

              One can able find the Security Configuration Wizard , Click on Security Configuration Report as shown in the screen shot below:







One can  Generate Security Configuration Report for WebSphere Application Server in IBM RAD Admin Console with the help of same steps in all the other versions of IBM RAD i.e. RAD 6.0,RAD 7.0 and RAD 8.0.

How To Start EAR For WebSphere Application Server in IBM RAD Admin Console

In this Post We shall learn How to Start EAR for WebSphere Application Server in IBM RAD Admin Console

Prerequisite :

1. One should have already created the WebSphere Application Server v6.1 @localhost in IBM RAD 7.5

2. Server Should be in Started Mode.

3. EAR Should be Created for Server

4. EAR Should be Installed/Deployed on the Server



How to Start EAR for WebSphere Application Server in IBM RAD Admin Console we have to open the Admin Console.



Step1: Open Admin Console ,Go to Applications->Enterprise Application. As Shown in the Screen Shot Click on Start Tab.



Once the Process is Finished ,the Application Status for the EAR should be displayed as green ,and one Message will display as Application EAR started Successfully.

Once the EAR got Installed/Deployed and Started one should Update the Global Web Server plug-in Configuration.



One can Start EAR Application in IBM RAD Admin Console with the help of same steps in all the other versions of IBM RAD i.e. RAD 6.0,RAD 7.0 and RAD 8.0.

How to Install/Deploy EAR in IBM RAD Admin Console

In this Post We shall learn How to Install/Deploy EAR for WebSphere Application Server in IBM RAD Admin Console

Prerequisite :

1. One should have already created the WebSphere Application Server v6.1 @localhost in IBM RAD 7.5

2. Server Should be in Started Mode.



How to Install/Deploy EAR for WebSphere Application Server in IBM RAD Admin Console we have to open the Admin Console.



Step1: Open Admin Console ,Go to Applications->Enterprise Application. As Shown in the Screen Shot Click on Install Tab.





 Step2: One will get the next Page of Installation wizard ,

If  you want to install EAR from  your Local system then choose option as “Local file system” and Browse the EAR in your Local system.

If you want to install EAR from any Remote system or your EAR is somewhere at other server,then choose option as “Remote file system”, Give the full path

Click on Next button as shown in the screen shot below:

 Step3: You will get the next page of installation wizard, Click Next button as shown in the screen shot below:

 Step4: You will get the next page of installation wizard,One can find list of Web Module (WAR) configured with the EAR, Select the Checkbox for each Web Module,Click Next button as shown in the screen shot below:

  Step5: You will get the next page of installation wizard,One can find list of Web Module (WAR) configured with the EAR and Virtual host at which the web module hosted. Select the Checkbox for each Web Module,Click Next button as shown in the screen shot below:





 Step6: You will get the next page of installation wizard,As shown in the Screen shot below: Click the Finish button.

 Step7: You will get the next page of installation wizard, Once the EAR Application got installed successfully ,Save the changes in master configuration.

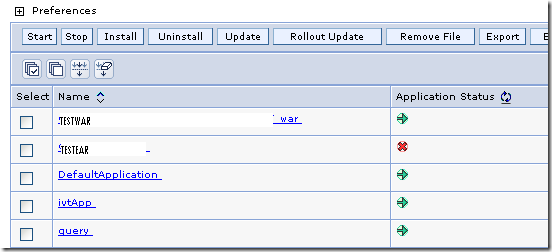

 Step8: Once the Save is complete ,One will able to find the EAR in the list ,As shown in the screen shot below:

One can  Install/Deploy EAR Application in IBM RAD Admin Console with the help of same steps in all the other versions of IBM RAD i.e. RAD 6.0,RAD 7.0 and RAD 8.0.

How To Update the Global Web Server plug-in Configuration for WebSphere Application Server in IBM RAD Admin Console

In this post we are going to learn how to Update the Global Web Server plug-in configuration file. The Web server plug-in configuration file settings determine whether an application server or the Web server handles user requests.

A global Web server plug-in configuration file plugin-cfg.xml  must be regenerated whenever:

1. One will change the configuration settings for an application server, cluster, Web container transport, or virtual host alias that is contained in the cell.

2. One will add a new application server, cluster, Web container transport, or virtual host alias to the cell.

The generated plugin-cfg.xml file is placed in the %was_profile_home%/config/cells directory. If your Web server is located on a remote machine, you must manually move this file to that machine.



Ref: http://publib.boulder.ibm.com/infocenter/wasinfo/v6r1/index.jsp?topic=/com.ibm.websphere.express.doc/info/exp/ae/uwsv_plugin_regen.html

Prerequisite :

  1. One should have already created the WebSphere Application Server v6.1 @localhost in IBM RAD 7.5

2. Server Should be in Started Mode.

3. EAR Should be Installed and Started already.

To Update the Global Web Server plug-in Configuration for WebSphere Applicatio Server in IBM RAD Admin Console we have to open the Admin Console.



Step1: To Update the Global Web Server plug-in Configuration for WebSphere Application Server in IBM RAD Admin Console ,

         Go to Environment->Update the Global Web Server plug-in Configuration as shown in the screen shot below:

                         -> Click OK



 Step2:  You will get a Message “The Web server plug configuration was updated successfully” and it will Update plugin-cfg.xml file for you. And Refresh the Environment.

One can Update the Global Web Server plug-in Configuration for WebSphere Application Server in IBM RAD Admin Console with the help of same steps in all the other versions of IBM RAD i.e. RAD 6.0,RAD 7.0 and RAD 8.0.

How To Stop and Uninstall EAR Project From WebSphere Application Server in IBM RAD Admin Console



In this Post We shall learn How To Stop and Uninstall/Remove EAR Project From WebSphere Application Server in IBM RAD Admin Console



Prerequisite :

1. One should have already created the WebSphere Application Server v6.1 @localhost in IBM RAD 7.5

2. Server Should be in Started Mode.

     3. EAR Should be Installed and Started already.



To Stop and Uninstall an EAR Project From WebSphere Application Server in IBM RAD Admin Console we have to open the Admin Console.

Step1: Open Admin Console ,Go to Applications-> Enterprise Application.



Step2: One can able to see all the EAR and WAR installed at WebSphere Application Server in IBM RAD. As shown in the screen shot below:

Step3: To Uninstall any EAR it should be in Stop mode. Stop the EAR by Clicking Stop button as shown in the screen shot below:



Step4: Once the EAR Stops ,One can able to see the Status as RED .

               Select EAR in Stop Status and Click the Uninstall button as shown in the Screen Shot below:



Step5: Click OK to Uninstall/Remove the EAR Application.



It will take some time to Uninstall the EAR Application from WebSphere Application Server.

Step6: Once the EAR got Uninstall , One Should get the Below message with Green Symbol as Shown in Screen Shot below:

Click at Save link to change in Master Configuration.

Once Save is Complete ,the EAR Application got successfully Uninstall from the Server.

One can  Stop and Uninstall/Remove EAR Application from WebSphere Application Server with the help of same steps in all the other versions of IBM RAD i.e. RAD 6.0,RAD 7.0 and RAD 8.0.

How To Create And Run JSP For WebSphere Application Server v6.0 at Localhost IBM RAD

In this Post we are Learning how we can Create and Run a simple JSP at Localhost for WebSphere Application Server v6.0 in IBM RAD.

Prerequisite:

                                 1. IBM RAD 7.5  installed in your machine.

                                 2. WebSphere Application Server should be Created.

                                 3. Server should be in Started mode

                                 4. Web Dynamic Project should be Created.



Step1: Open IBM RAD 7.5

                 Go to File->New->Others…





 Step2: One New wizard will Open, Select JSP from the list as shown in the screen shot below:

 Step3: Create the JSP folder under your webProject/WebContent

               Name the Jsp file Name and Click Finish as shown in the screen shot below:

 Step4: One new Window will open having list of JSP Template ,Select a template as initial content in the JSP page.

               For JSP with html markup template select New JSP File(html) as shown in the list below and Click Finish:



 Step5: Create your JSP as per your requirement , JSP will be under webProject/WebContent/JSP as folder structure shown below for Home.jsp:

 Step6: Start WebSphere Application Server v6.1 and Check the Console one can find the default port bound to the webproject  you had created.

 Step7: Type  URL-http://localhost:9080/path of your JSP page ,You will get your JSP page as Shown below in the screen shot:

 Step8: Fill the Credential as User Id and Password ,Click Login

 Step9: You Get Another JSP page Submit.jsp as Response of Clocking Login at the Home.jsp. As Shown in the Screen Shot below:



The Creation and Running of JSP in a Web Dynamic Project (WAR) for WebSphere Application Server v6.0 at Localhost is same as mentioned above in IBM RAD 6.0, RAD 7.0 and RAD 8.0.
